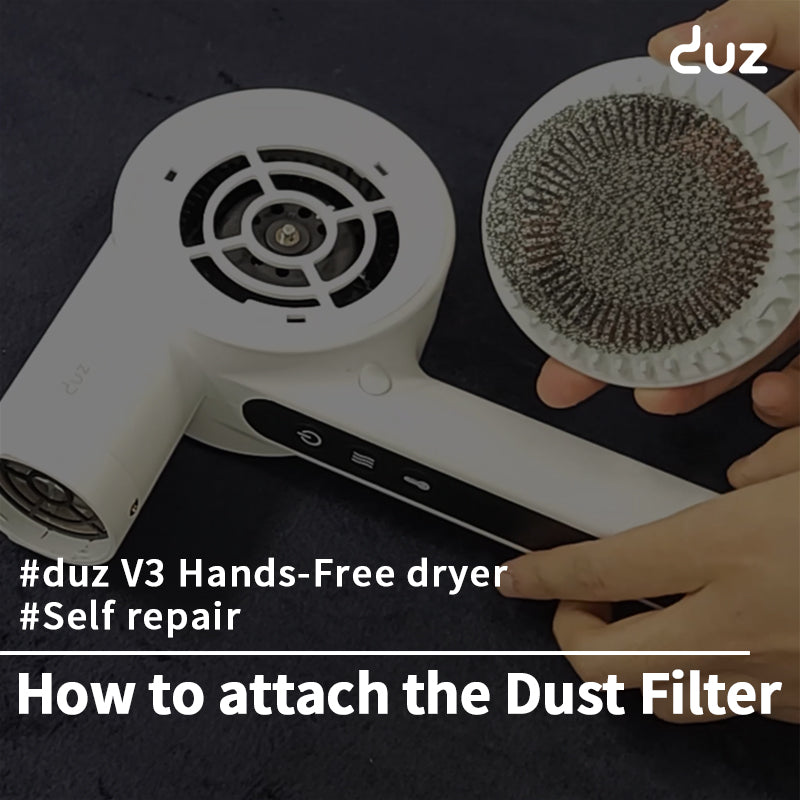

[duz dryer / Self repair] How to attach the duz V3 dust filter

Today, we'll learn how to replace the filter on the duz V3 dryer.

.



⚠️To enhance the safety features, a lock mechanism has been added to the inlet cover, which comes into direct contact with the internal components.

As a result, removing and attaching the cover may feel a bit more difficult than before.

We apologize for the inconvenience and ask that you please refer to the instructions below.





[Method 1]

1. Gently press the center of the inlet cover and turn it clockwise to open it.
2. Remove the filter inside and replace it with a new one.
3. Align the gear-shaped grooves on the inlet cover with the holes on the main unit, then press the inlet cover while turning it counterclockwise to secure it in place.



(Please refer to the video for detailed instructions.)











[Method 2]

1. Use a tool such as a screwdriver to gently lift the inlet cover and turn it clockwise to remove it.
2. Replace the dust filter mesh.
   (The dust filter mesh can be purchased from duz website.)
3. Reattach the inlet cover by turning it counterclockwise until you hear a clicking sound.

Depending on the usage environment, it is recommended to replace the filter periodically.

(Please refer to the video for detailed instructions.)









The replacement cycle may vary depending on the usage environment, but we recommend replacing the filter approximately every 6 months.
